Description

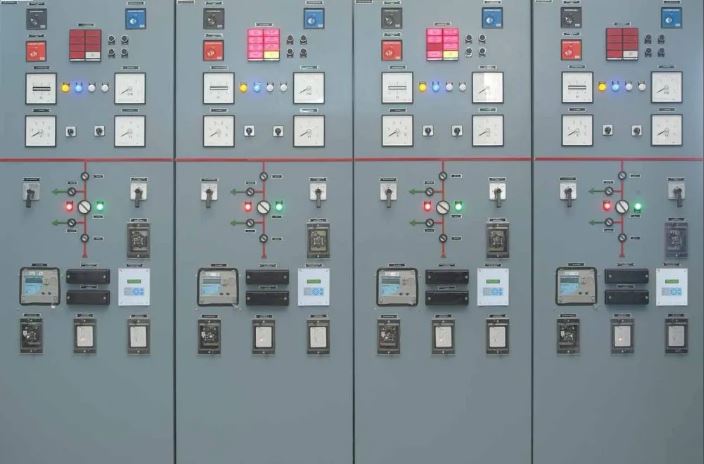

A Control & Relay (C&R) panel is a critical component in electrical substations and industrial power systems, serving as the central nervous system for monitoring, controlling, and protecting vital electrical equipment like transformers, generators, and circuit breakers. These robust enclosures house a sophisticated array of devices, including protective relays, control switches, meters, and alarm systems, which collectively ensure the safe and reliable operation of the power network. The primary function of a C&R panel is protection; it uses specialized relays to swiftly detect abnormal conditions or electrical faults (such as short circuits or overloads) and automatically isolate the faulty section to prevent widespread damage or power outages. Beyond protection, the panel facilitates both local and remote operational control, allowing utility engineers and operators to manage switching actions and integrate the system with modern Substation Automation or SCADA systems for enhanced grid management and stability.
Specifications
| Control and Protection |
The panels house control and relay panels (CRP) that provide a centralized location for controlling and protecting the electrical system. These panels contain numerical relays that protect the equipment from abnormal conditions such as faults and voltage surges. |
| Monitoring |
Continuously tracks vital parameters like voltage, current, and frequency, using integrated meters and alarms to alert operators to abnormal conditions. |
| Monitoring and Indication |
The panels allow for centralized supervision, receiving all vital information related to the controlled equipment. They provide ON/OFF indications for circuit breakers, isolators, and earth switches using lights or semaphore indicators. Meters such as ammeters, voltmeters, and power and energy meters are also included. |
| Safety and Operation |
The panels provide alarm and trip commands under abnormal conditions to act as a "watchdog" for the system. They also facilitate the isolation and maintenance of equipment. |
