Description

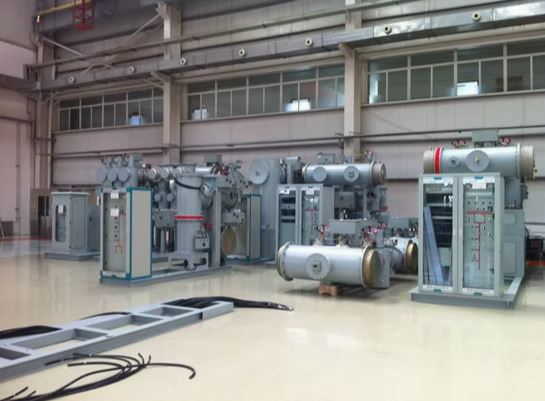

A compact substation is a modern, space-efficient electrical power distribution solution that integrates essential components such as transformers, switchgear, and control systems within a modular, enclosed structure. The extreme reduction in size of these substations is primarily achieved through the use of Gas Insulated Switchgear (GIS) technology, which employs an inert and highly effective dielectric gas, commonly sulfur hexafluoride (SF₆), for insulation instead of traditional air gaps. This design choice results in systems that can occupy up to 85% less space than conventional, air-insulated substations (AIS), making them ideal for urban environments where land is limited and expensive. The sealed and environmentally protected nature of GIS-based compact substations also enhances operational safety, increases reliability by protecting components from pollution and harsh weather, and significantly reduces long-term maintenance costs.
Specifications
| Environmental Immunity: |
The live components are hermetically sealed in gas-tight enclosures, protecting them from external factors like dust, moisture, pollution, salt spray, and extreme weather. |
| Flexible Installation: |
Their compact, metal-enclosed design allows them to be installed in urban areas, on rooftops, in industrial facilities, or even underground, where land is a premium or scarce. |
| High Dielectric Strength: |
The insulating gas (typically SF₆, or eco-friendly alternatives) has excellent dielectric strength and arc-quenching capabilities, enhancing system stability and safety. |
| Fewer Faults: |
The protected internal environment leads to increased operational reliability and fewer outages, which is critical for essential services and industries that demand uninterrupted power. |
