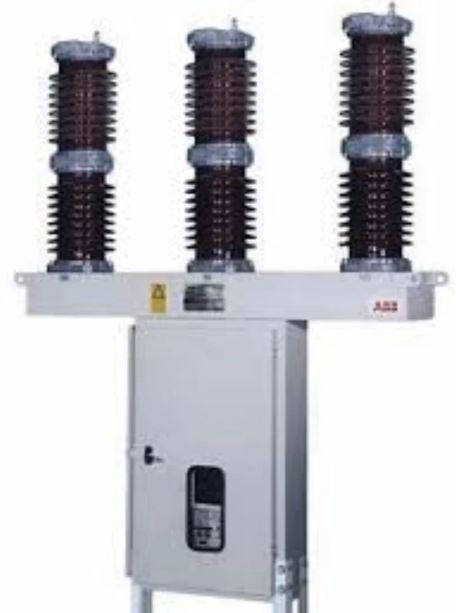

Extra High Voltage (EHV) circuit breakers are critical components in electrical power transmission systems, operating at voltages of 100 kV and above (such as 132 kV, 220 kV, 400 kV, and 800 kV), where they protect extensive grids from severe faults and ensure system stability. The predominant technology for EHV applications is the Sulfur Hexafluoride (SF₆) circuit breaker, which utilizes SF₆ gas as an superior insulating and arc-quenching medium due to its high dielectric strength (significantly higher than air or oil) and ability to rapidly regain dielectric strength after arc extinction. SF₆ breakers offer high reliability, compact size, and low maintenance requirements compared to older technologies like oil or air-blast circuit breakers, and they are capable of handling the high fault currents and demanding transient recovery voltages (TRV) characteristic of EHV systems. While highly effective, the primary drawback is that SF₆ is a potent greenhouse gas, necessitating strict handling, monitoring, and recycling procedures to mitigate environmental impact, although newer environmentally friendly alternatives are under development.

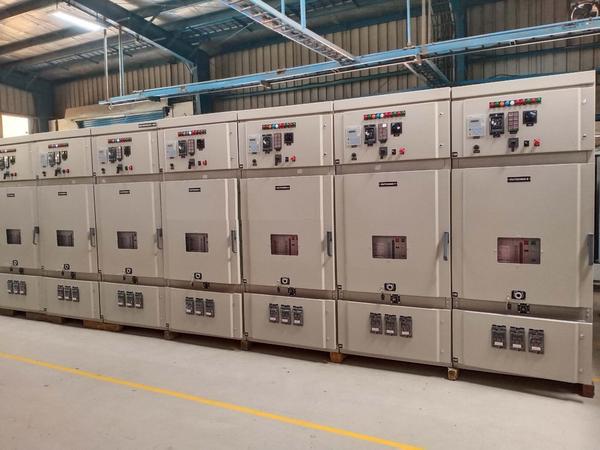

A High Tension (HT) Vacuum Circuit Breaker (VCB) is a vital piece of electrical switchgear designed for reliable protection and control in medium- to high-voltage power systems, typically operating between 11 kV and 36 kV. It functions by extinguishing the electric arc in a sealed, high-vacuum interrupter chamber, a method that is highly efficient, environmentally friendly, and requires minimal maintenance compared to oil or air-blast alternatives. These robust devices are favored across power distribution networks, substations, and large industrial facilities due to their superior safety features, long electrical life, and high performance in interrupting both normal and fault currents caused by overloads or short circuits. Leading manufacturers such as ABB, Schneider Electric, and Siemens produce a wide range of VCB models built to stringent international standards like IEC 62271-100, ensuring operational reliability and safety.

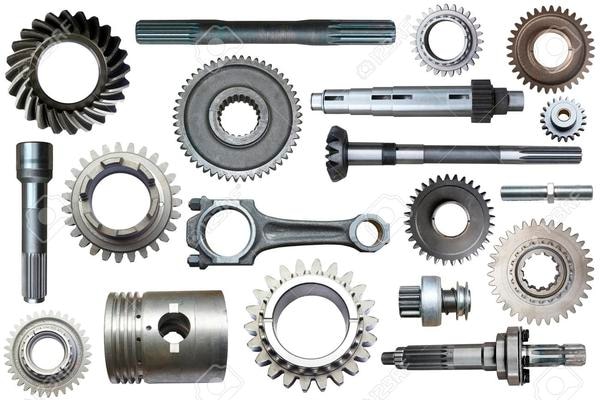

These components are typically made of steel or cast iron and are essential for the operation of many types of machinery, including automobiles, agricultural equipment, and industrial gearboxes.
